FiiO KA17 Portable USB DAC Audio HiFi Decoder, Dual ES9069Q PCM768 DSD512 3.5/4.4mm Output for Android iOS Mac Win10 (Black)
- Regular price
- $144.99
- Sale price
- $144.99
- Regular price
-
Couldn't load pickup availability
Free 30 Day Return Policy
Shipping policy
Shipping policy

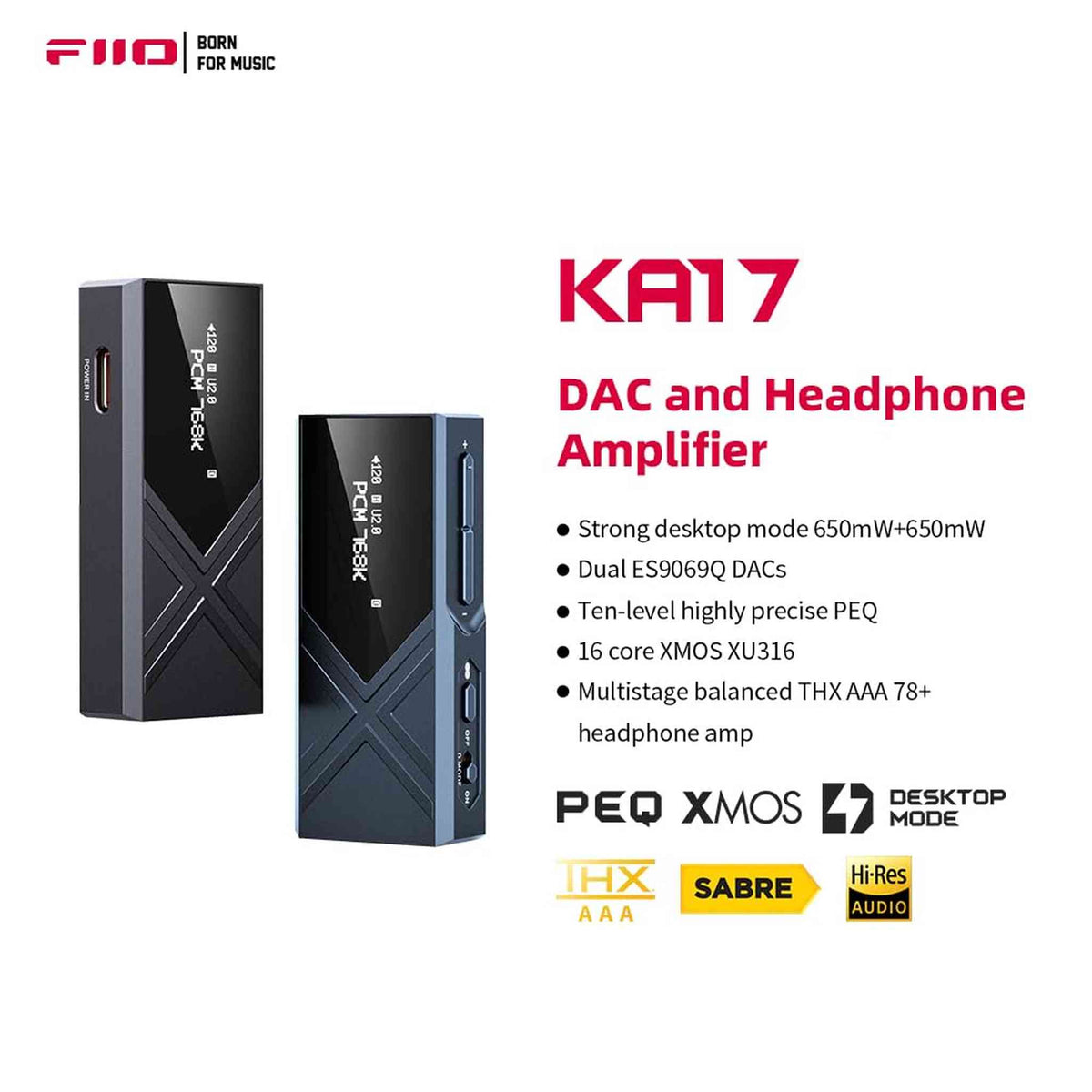

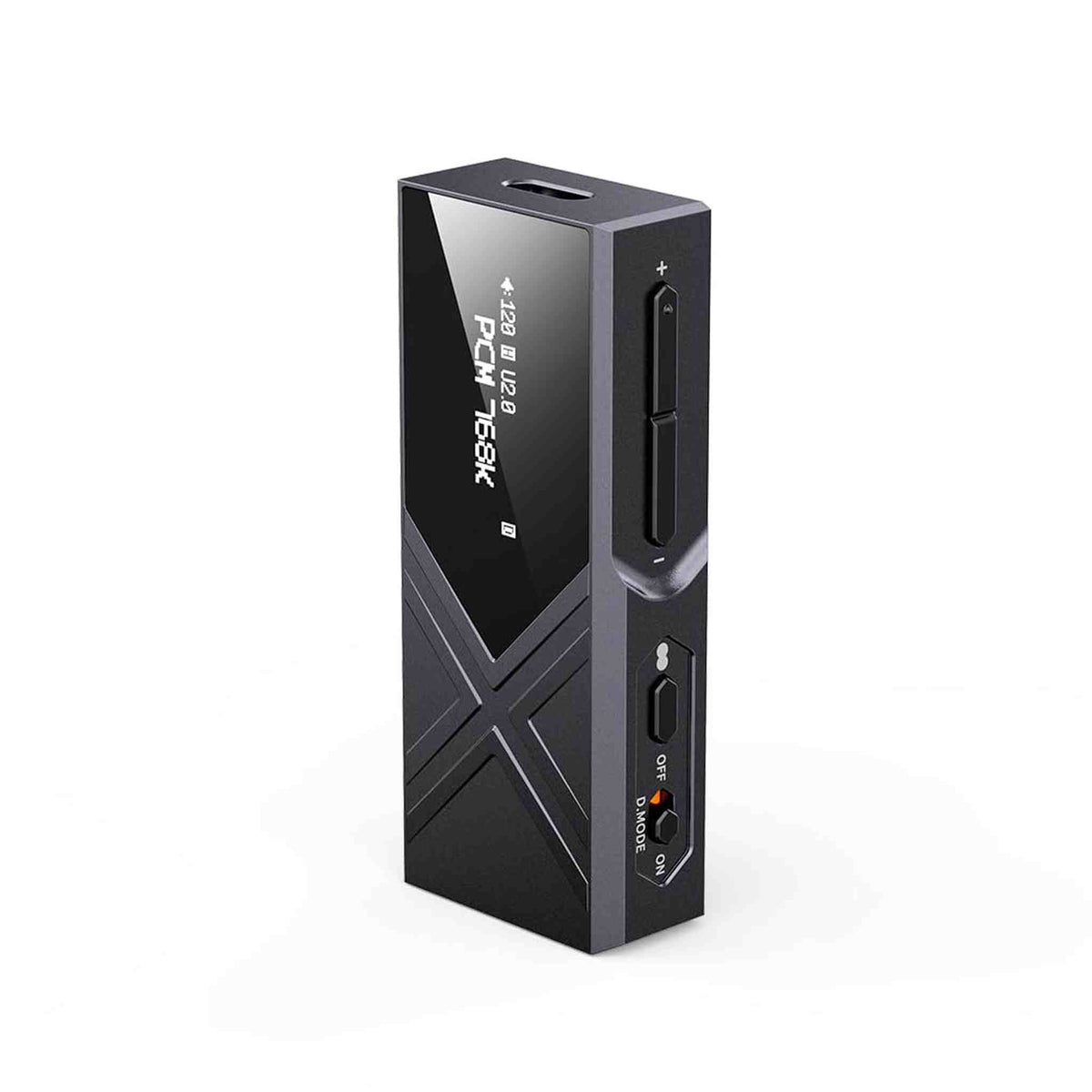

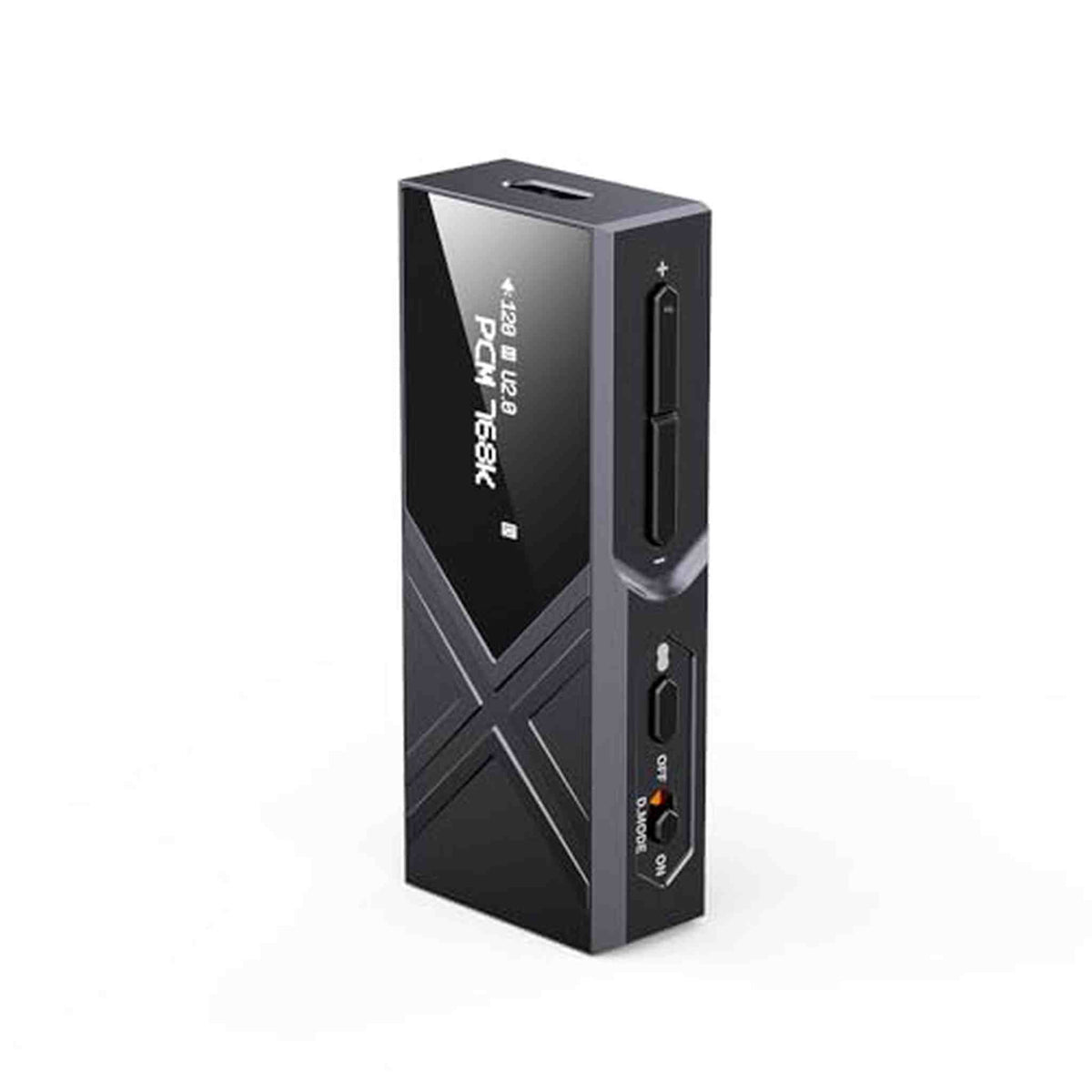

FiiO KA17 Portable USB DAC & Headphone Amplifier – Dual ES9069Q – Black
The FiiO KA17 is a flagship USB DAC and headphone amplifier that brings mid-to-high-end digital audio player circuitry to a compact dongle. Dual ESS ES9069Q DACs with fourth-generation 32-bit HyperStream technology achieve a 130dB dynamic range and -120dB THD+N, while a 16-core XMOS XU316 USB processor supports PCM 768kHz/32-bit, DSD512, and full MQA decoding.
It was the first USB dongle to use a THX AAA 78+ headphone amplifier circuit, with eight op-amps in a four-channel, fully balanced configuration. Flip the dedicated Desktop Mode switch and connect external power to the orange POWER IN port, and the KA17 unleashes up to 650mW + 650mW of balanced power.
Key Features

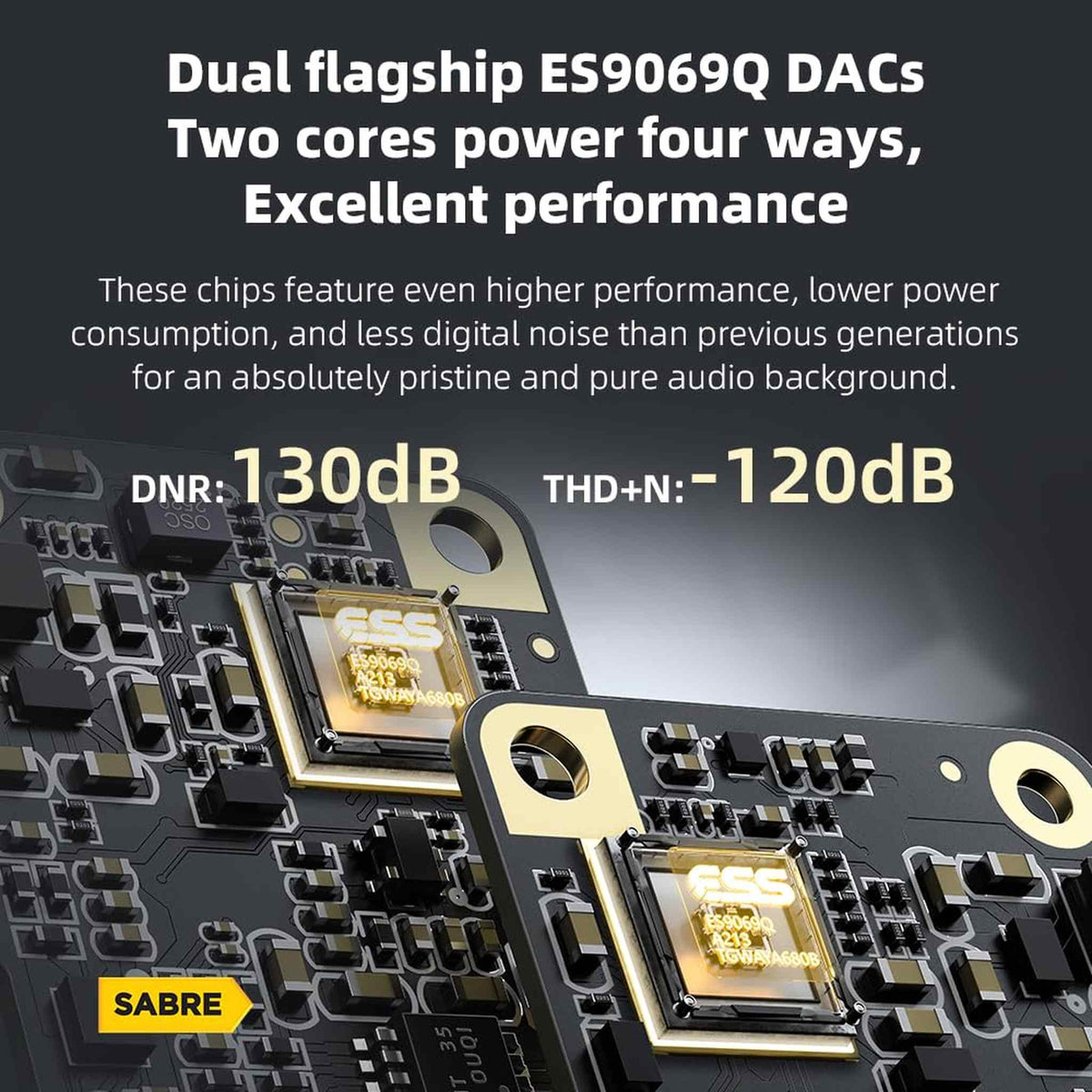

- Dual ESS ES9069Q flagship DACs with 32-bit HyperStream IV architecture
- 130dB dynamic range and -120dB THD+N for an ultra-clean background
- XMOS 16-core XU316 USB processor: PCM 768kHz/32-bit, DSD512, full MQA decoding
- Four-channel fully balanced THX AAA 78+ headphone amplifier
- Desktop Mode with dedicated Type-C POWER IN port: up to 650mW + 650mW balanced
- 3.5mm single-ended and 4.4mm balanced outputs, plus S/PDIF output
- 10-band high-precision PEQ via FiiO Control app
- Separate shielded digital and analog boards to prevent interference
- 3-stage, 10-rail power supply design
- 0.91-inch display with physical volume and function buttons

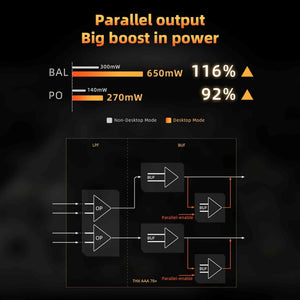

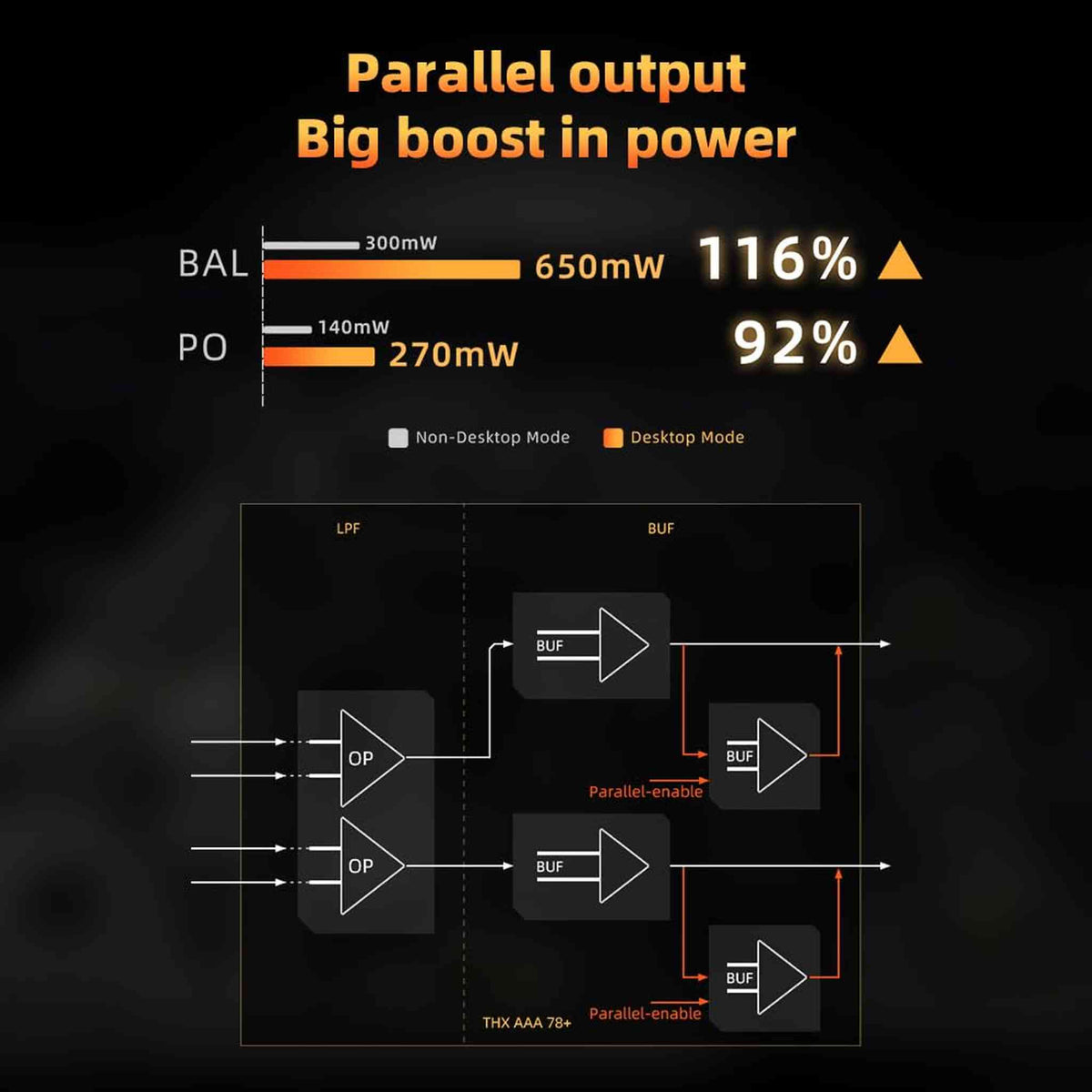

Desktop Mode Brings Robust Power
With sufficient power, the KA17's four THX amplifier channels work in parallel for greater current and output — up to 650mW + 650mW balanced and 270mW + 270mW single-ended — approaching the performance of a desktop amplifier.
Desktop-Grade Circuit Design
By adapting audio circuitry from FiiO's digital audio players and isolating digital and analog sections on separate shielded boards, the KA17 delivers detailed, dynamic, and accurate sound.
Make It Yours
Use the 10-band PEQ in the FiiO Control app to correct headphone frequency-response peaks and dips, or simulate the curves of famous headphones.
Specifications
| Brand | FiiO |
| Type | Portable USB DAC / Headphone Amplifier |
| DAC | Dual ESS ES9069Q |
| USB Processor | XMOS XU316 (16-core) |
| Amplifier | THX AAA 78+ (four-channel fully balanced) |
| Max Decoding | PCM 768kHz/32-bit, DSD512, full MQA |
| Inputs | USB Type-C (data) + USB Type-C POWER IN |
| Outputs | 3.5mm single-ended, 4.4mm balanced |
| Output Power (Desktop Mode, 32Ω) | BAL ≥650mW + 650mW; SE ≥270mW + 270mW |
| Output Power (Standard Mode, 32Ω) | BAL ≥300mW + 300mW; SE ≥140mW + 140mW |
| Output Power (Desktop Mode, 300Ω) | BAL ≥90mW + 90mW; SE ≥30mW + 30mW |
| THD+N | <0.0004% (1kHz/32Ω) |
| SNR | ≥126dB (A-weighted) |
| Display | 0.91-inch |
| Color | Black |
| SKU: | FIIKA17BK |
|---|---|
| Brand: | FiiO |
| Manufacturer: | FiiO |
| Condition: | NEW |
| MPN: | KA17 |
| Height (inches): | 1.650 |
| Length (inches): | 6.340 |
| Width (inches): | 4.060 |
| Weight (lb): | 0.4200 |
